HDMI Breakout adapter for Mechanic T-824 Tester

HDMI Breakout adapter for Mechanic T-824 Tester

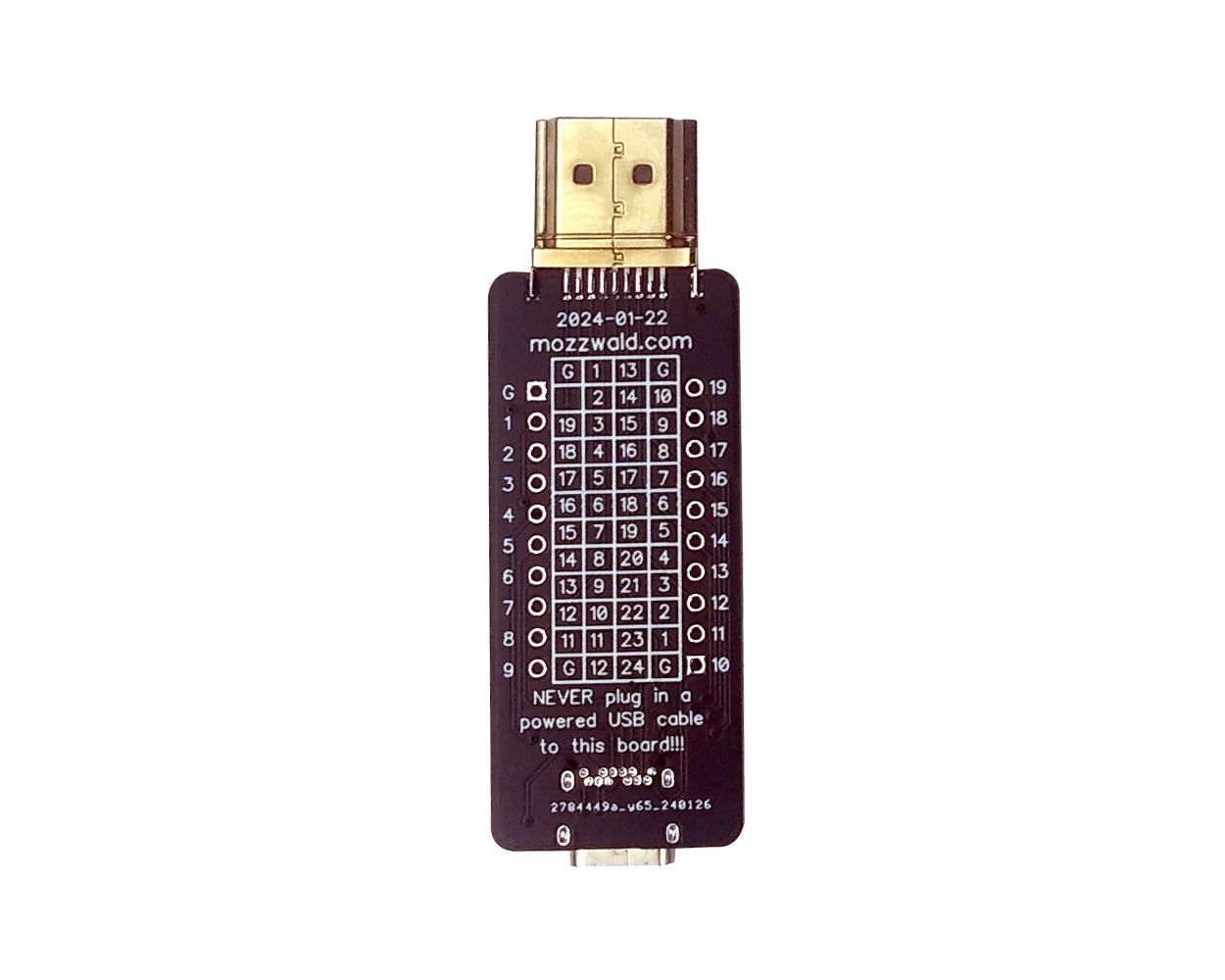

This HDMI to USB-C adapter board is designed to be used with the Mechanic T-824 USB-C / Lightning “Tail Insertion Tester” or as a standalone HDMI breakout board. The T-824 tester performs a diode mode test on all pins in the port giving you a quick idea if there’s a problem. This adapter connects all pins on a male HDMI port to the pins of a female USB-C port allowing you to quickly do a diode test on the HDMI port of a non-working device.

# DO NOT connect a USB cable to this board when it’s plugged into an HDMI device or you will damage the device! This board is for use as a standalone HDMI breakout or with the Mechanic T-824 tester ONLY.
